Rotary Isobaric Filler

Rotary Isobaric Filling Machine

Monobloc Bottle Rinsing - Isobaric Filling - Capping Machine

3-1 Rotary Isobaric Filler
Transmitting Starwheel & Filling Turret

3-1 Rotary Isobaric Filler
Feeding Conveyor

3-1 Rotary Isobaric Filler
Filling Tank

3-1 Rotary Isobaric Filler

3-1 Rotary Isobaric Filler
Plastic Screw Cap Sorter

3-1 Rotary Isobaric Filler
Screw Capper

3-1 Rotary Isobaric Filler
Full Guard

3-1 Rotary Isobaric Filler
Full Guard with Elevating Cap Sorter

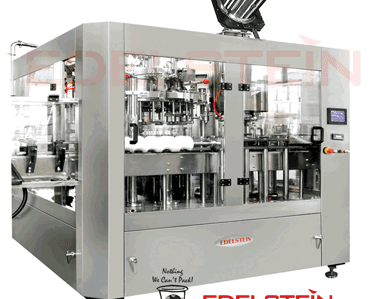

Rotary Bottle Rinser-Filler-Capper

Model: ED-FRTI18

Capacity: 6000 bph

PET Bottle for 350ml

18 Water Rinsing Nozzles

18 Isobaric Filling Nozzles

6 Screw Capping Head


Monobloc 3-1 Isobaric Filler

Rotary Isobaric Filling Machine

Monobloc 3-1 PET Bottle Rinsing - Isobaric Filling - Capping Machine

for Carbonated Beverage

Features:

This 3-in-1 monobloc rotary bottling system machine is specially designed by EDELSTEIN for filling carbonated soft drinks or drinks
containing bubbles in PET or glass bottles.

The compact structure is composed of bottle washing, pressure balance with injecting CO2, isobaric filling and screw capping function into
one unit as automation

Safety device for preventing bottle from crushing

No bottle-No filling function together with auto-shutoff system during bottle leaking on filling valve

Capping force through magnetic mechanism is stepless adjustable

Stainless steel construction of main machinery frame and cover to meet food sanitary standard as well as painted robust steel as machine base

All stainless steel construction of fluid path components to avoid corrosion problem

Output  Range:  Up to 18,000 bottles per hour

Model                    Max. (bph)

ED-FRTI18         6000

ED-FRTI24        8000

ED-FRTI32        12000

ED-FRTI40       15000

ED-FRTI50       18000

Applications:

Plastic bottle, Glass bottle
Neck handling
Aluminum / Plastic screw cap, crown cap
For filling carbonated soft beverage like coke, soda water, bubbled mineral water

Options

Touch-In Screen
Cap feeder with Cap Sorter
Cap sterilizer
CO2 mixer
Bottle Unscrambler


Monobloc 2-1 Isobaric Filler

Rotary Isobaric Filling Machine

Monobloc 2-1 PET Bottle Rinsing - Isobaric Filling - Capping Machine

for Carbonated Beverage

Features

his 2-in-1 monobloc rotary bottling system machine is specially designed by EDELSTEIN for filling carbonated soft drinks.

Machine is composed of vacuum filling, pressure balance with injecting CO2 and screw capping function into one unit as automation

Safety device for preventing bottle from crushing

Stainless steel construction of main machinery frame and cover to meet food sanitary standard as well as painted robust steel as machine base

All stainless steel construction of fluid path components to avoid corrosion problem

Continuous and manual control functions for various applications

Filling nozzles are sealed airtight while filling to prevent oxygen from entering into the filled bottles to enhance quality

This machine could be well connected with auto-CIP washing system as automation

Output  Range:

Model                    Max. (bph)

ED-FRDI18         3000

ED-FRDI24        5000

ED-FRDI32        8000

Applications:

Plastic bottle, Glass bottle
Neck handling
Aluminum / Plastic screw cap, crown cap
For filling carbonated soft beverage like coke, soda water, bubbled mineral water

Options

External Splash Guard
No Bottle-No Fill Funcion
PLC Control
Touch-In Screen
Cap feeder with Cap Sorter
Cap sterilizer
CO2 mixer
Bottle Unscrambler


What is the key points of choosing the rotary Isobaric filler?

When choosing a rotary isobaric filler, here are some key points to consider:

  • Capacity: Rotary isobaric fillers come in different capacities, depending on the size of your production line and the amount of product you need to fill. Consider the hourly production rate of the filler to ensure it can meet your needs.
  • Bottle size and shape: Rotary isobaric fillers come with different bottle-handling systems, depending on the size and shape of your bottles. Make sure the model you choose can handle your bottles with ease.
  • Material: Look for a rotary isobaric filler that is made from high-quality, food-grade materials, such as stainless steel. This will ensure the durability and longevity of the machine, and that it is safe for use with food and beverages.
  • Precision: Rotary isobaric fillers are designed to fill bottles with a precise amount of liquid while maintaining a constant pressure inside the bottle. Look for a model that offers accurate and consistent filling to ensure that each bottle is filled to the same level.
  • Speed and efficiency: Rotary isobaric fillers are designed for high-speed filling, but the speed and efficiency can vary depending on the model. Look for a model that can fill bottles quickly without compromising the quality or consistency of the product.
  • Ease of use and maintenance: Look for a rotary isobaric filler that is easy to operate and maintain. The machine should have a user-friendly interface, simple controls, and easy-to-follow maintenance procedures.
  • Additional features: Some rotary isobaric fillers may come with additional features such as bottle unscrambling machine, blowing transmission system of PET bottle, bulk cap storage and supping conveying system with sorting function, a capping system with automatic loading function, or a additional labeling system. Consider these features if they are important for your production line.

Overall, the key points for choosing a rotary isobaric filler include capacity, bottle size and shape, material, precision, speed and efficiency, ease of use and maintenance, and additional features. Consider these factors when selecting a model that meets your specific needs and requirements.


Isobaric Filling Machine Models:
