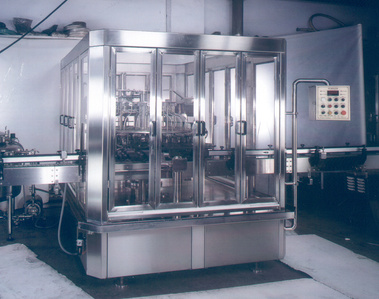

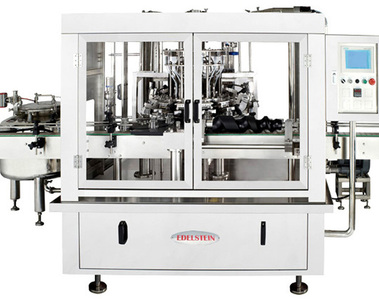

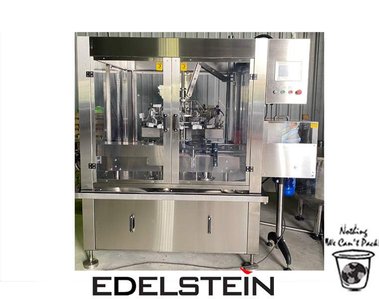

Rotary Bottle Water Rinser (Rotary Bottle Water Washing Machine)

EDELSTEIN's Rotary type Bottle Water Rinser for bottle cleaning (bottle rinser) is a trusted  machine in the food and beverage industry. The Rotary type rinsing machine is designed with transmission of linear conveyor and starwheels to meet the effectively rinsing bottles, glasses, and various containers etc. with the use of clean filtered water for more sanitary application. This machine with high-speed bottle cleaning ability is designed to rinse, clean all kinds of jars, bottles. It is especially suitable as a high value drinks bottle rinser like wine bottle, birdnest jar, beer bottle, water glass bottle, juice bottle, tea bottle, coffee bottle, refreshing drinks, herb drinks etc. It can work as an overall multi-bottle rinsing machine.

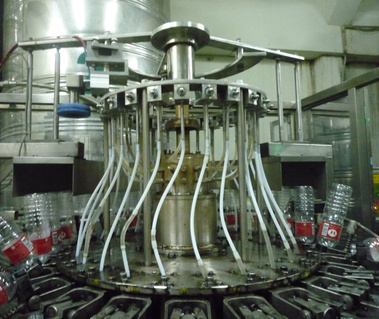

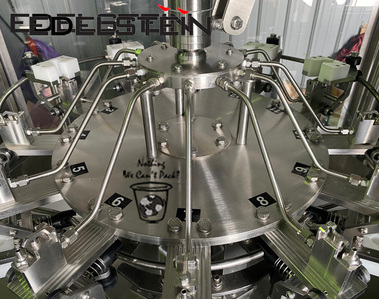

Regarding the cleaning process of this Rotary type bottle rinsing machine, The bottles are fed into the working area by means of transmission conveyor, starwheels  and are gripped by a clamping jaw station at rotating spindle turret, rotated 180 degrees during rotating. The clean filted water will spray out from the rinsing nozzles in to inside of the upside-down bottle to clean the inner wall of containers. Meanwhile the water flows out from the bottle. After rotating some degrees while the bottles are clean completely, the clamping jaw station will be rotated 180 degrees again with opposite direction to let the bottles at the original status which the bottle stand on the discharge transmission conveyor.

Then the containers can drip off or the loosened particles can fall out. The containers are then turned back and transferred to a downstream transport system.

Some proper additives can also be added to the rinsing medium to help the cleaning effect for different and special application, for example, to have a germ-reducing effect.

Rotary Bottle Water Rinser

- Stainless steel construction
- High resistance to corrosion
- High hygiene and sanitation
- Easy cleaning and maintenance
- Operation friendly with HMI (Human Machinery Interface touch-in screen)
- Accuracy automatically control with PLC to meet high operation performance
- Easy adjustment for changing different sizes without need of special change parts
- Constantly high screwing strength in any working conditions

The above mentioned technical data offers an approximate description of the machine.

The technical features and the machine configuration are to be confirmed at the time of order.

Models:

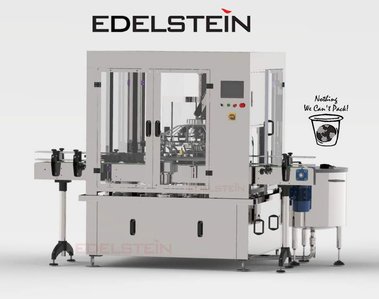

ED-RR12:  12 Heads       3,600BPH

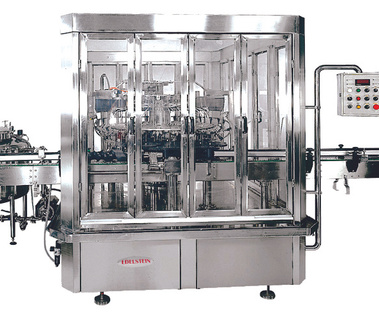

ED-RR18:  18 Heads       5,400BPH

ED-RR24:  24 Heads     7,200BPH

ED-RR31:   32 Heads     9,600BPH

There are some different models of Rotary Bottle Water Rinsers:

Rotary type Cold water bottle rinser:

• Uses cold water as the cleaning medium to rinse bottles
• Ideal for rinsing bottles with non-sticky or non-viscous liquids such as water, soda, or beer
• Water is typically supplied at room temperature or chilled
• Can be integrated with other equipment such as fillers or cappers to form a complete bottling line

Rotary type Hot water bottle rinser:

• Uses hot water as the cleaning medium to rinse bottles
• Ideal for rinsing bottles with sticky or viscous liquids such as juices, syrups, or honey
• Water temperature can be controlled to suit the cleaning requirement of different products
• Can be integrated with other equipment such as fillers or cappers to form a complete bottling line

Linear bottle rinsing machinery made by EDELSTEIN, with innovative design for bottle cleaning requirement. We offer different bottle washing systems, rotary or in-line type with different speed requirement and combined with different applications such as air washing, continuous washing, multi-step washing requirements adopted in the field of Beverage, Chemicals, Cosmetics, Beauty and Household products.

If you are not sure which type you should select or you need professionally technical consultation, please contact us, we will provide you with the most suitable solution according to your actual needs.
