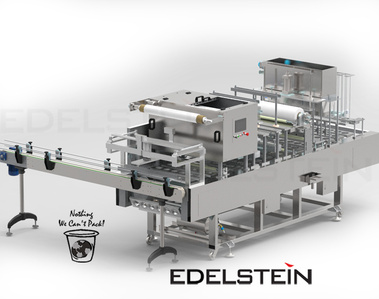

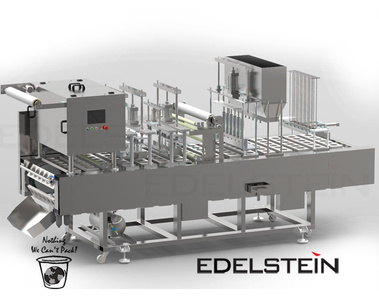

Multi-lane Cup Filler
model: ED-MLC-202R
Rolled foil application
for small cup
(cup mouth Dia. smaller than 50mm)
Overview of machine

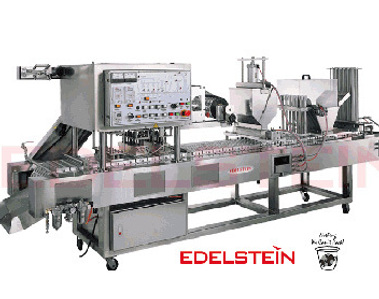

Multi-Lane Cup Filler-Sealer
model: ED-MLC-202
- Rolled foil
- for liquid material
Cup (containers) loading system
foil sealing and cutting system
finished product discharge system
Multi-lane Cup Filler Sealer
Multi-lane Cup Filling-Sealing Machine
Multi-lane Cup Filler Sealer
Application:
mini-cup jelly
mini-cup jelly
mini-cup jelly
mini-cup jelly
Features:
- EDELSTEIN MLC series cup filler-sealer is for high production fabrication of food products packed in the disposable cup.
- Suitable for automatic operation and high productivity.
- Friendly operation
- Stainless steel design of main machinery frame and cover to meet food standard
- All stainless steel construction of fluid path component to avoid corrosion problem
- Heat treated aluminum cup carrier molds to increase hardness for durable life
- Cup magazine and auto cup loading device
- Foil magazine and auto foil loading device
- Auto washing device for cup carrier molds and conveyor
- Adjustable temperature controlled sealing for firmness assurance
- Continuous and manual control functions for various applications
- Dripping reservoir
- Easy to clean and maintain.
- Easy to integrate into relevant turnkey line.
Options:
- Date coder (for roll foil)
- External safety guard
- Outfeed conveyer
- Final product feed-out collector
- Top cover pick-place-press system
- Vibrating Hopper feeder for dry (solid) material
- Additional dry (solid) material filling function (powder, chip, granule etc.)
- Cup rinsing system
- Air spray cleaning device
- Ozone rinsing
- Dust free filling chamber (HEPA)
- No cup-No fill function
- PLC control
- Touch-In Screen
