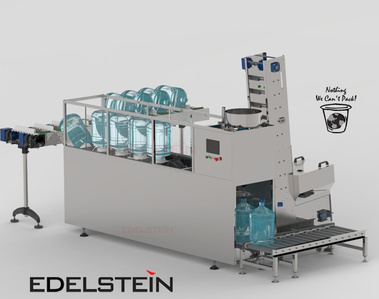

5-gallon Jug Washing-Filing-Capping Machine

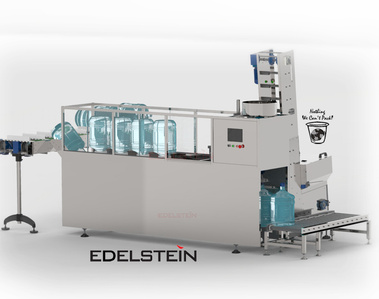

3-gallon Jug Washing-Filing-Capping Machine

3-gallon Jug Washing-Filing-Capping Machine

5-gallon Jug Washing-Filing-Capping Machine

3-gallon Jug Washing-Filing-Capping Machine

5-gallon Jug Washing-Filing-Capping Machine

3-gallon Jug Washing-Filing-Capping Machine

5-gallon Jug Washing-Filing-Capping Machine


Key Features of Jug Washing, Filling, Capping Machine for Drinking Water:

  • Multiple-stage Washing: The machine typically incorporates multiple washing stages to ensure thorough cleaning and sanitization of the jugs. This helps remove any contaminants or residues from the previous use.
  • High-Pressure Washing: The machine utilizes high-pressure jets or nozzles to spray water and cleaning agents inside the jugs. This ensures effective cleaning and removal of any impurities.
  • Sterilization: Some machines include a sterilization stage where the jugs are exposed to UV light or ozone to eliminate any remaining bacteria or microorganisms.
  • Precise Filling: The machine is designed to accurately fill the jugs with the desired volume of drinking water. This ensures consistency and avoids overfilling or underfilling.
  • Capping Mechanism: The machine includes a capping mechanism to securely seal the jugs after filling. This prevents any leakage or contamination.

Operation Concepts:

  • Loading and Unloading: The empty jugs are loaded onto the machine's conveyor system, and the filled jugs are unloaded after the completion of the process. This can be done manually or automatically.
  • Washing Stage: The jugs pass through the washing section where they are subjected to high-pressure water jets and cleaning agents to remove dirt, residues, and contaminants. This stage may involve multiple cycles of washing and rinsing.
  • Sterilization Stage: If included, the jugs move through a sterilization chamber where they are exposed to UV light or ozone to kill any remaining bacteria or microorganisms.
  • Filling Stage: The cleaned and sterilized jugs are positioned beneath the filling nozzles, and the desired volume of drinking water is accurately dispensed into each jug. The filling process is controlled by sensors and valves to ensure precise filling levels.
  • Capping Stage: Once filled, the jugs move to the capping section where caps or closures are applied and securely tightened. This ensures proper sealing and prevents any leakage or contamination.

Working Time of Each Processing Stage:

The working time of each processing stage can vary depending on the specific machine and its configuration. However, here's a general breakdown of the approximate working time for each stage:

  • Loading and Unloading: This stage is relatively quick and can take a few seconds per jug.
  • Washing Stage: The washing stage typically takes a few minutes per cycle, depending on the complexity of the washing process and the level of dirt or contaminants.
  • Sterilization Stage: If included, the sterilization stage usually takes a few seconds to a minute, depending on the chosen sterilization method.
  • Filling Stage: The filling stage can take a few seconds to a minute per jug, depending on the desired volume and the filling speed of the machine.
  • Capping Stage: The capping stage typically takes a few seconds per jug to apply and tighten the caps securely.

It's important to note that the working time may vary based on factors such as machine capacity, speed settings, and the specific requirements of the production line.


5-gallon Jug Filing-Capping Machine

3-gallon Jug Filing-Capping Machine

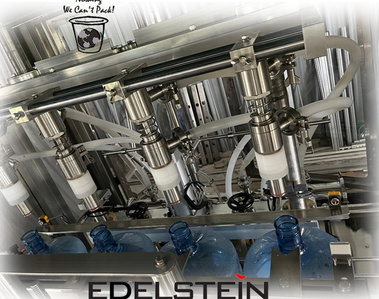

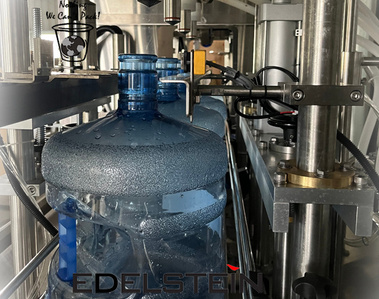

In-line Bottle Pressure Overflow Fillier for  3-gallon / 5-gallon jug drinking water

In-line Bottle Pressure Overflow Fillier for  3-gallon / 5-gallon jug drinking water

In-line Bottle Pressure Overflow Fillier for  3-gallon / 5-gallon jug drinking water

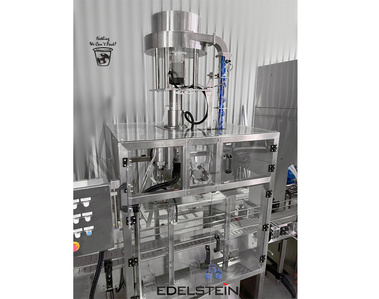

In-line Bottle Pressure Overflow Fillier and Cappng Machine for  3-gallon / 5-gallon jug drinking water

HEPA

In-line Bottle Pressure Overflow Fillier and Cappng Machine for  3-gallon / 5-gallon jug drinking water

In-line Bottle Pressure Overflow Fillier and Cappng Machine for  3-gallon / 5-gallon jug drinking water

The key features of a 3-gallon / 5-gallon Jug Washing-Filling-Capping Machine for drinking water are:

  • Automatic washing, filling and capping: The machine is designed to perform the washing, filling, and capping processes automatically, which reduces the need for manual labor.
  • Stainless steel construction: The machine is constructed using high-quality stainless steel materials, which ensures its durability and longevity.
  • Easy to operate: The machine is easy to operate, with a user-friendly interface that allows operators to control the various functions of the machine easily.
  • High efficiency: The machine is designed to operate at high speeds, with some models capable of washing, filling, and capping up to 150 bottles per hour.
  • Low maintenance: The machine requires minimal maintenance, which helps to reduce downtime and increase productivity.
  • Multiple washing stages: The machine typically features multiple washing stages, which ensures that the bottles are thoroughly cleaned and sanitized.
  • Accurate filling: The machine is designed to fill each bottle with a precise amount of water, ensuring that all bottles contain the same volume of water.

The speed of different models of 3-gallon / 5-gallon Jug Washing-Filling-Capping Machine for drinking water varies depending on the manufacturer and model. However, most models are capable of filling between 60-150 bottles per hour. It's important to note that the speed of the machine can also be affected by other factors such as the size of the bottles and the viscosity of the water being filled.

3 gallon / 5 gallon Jug Washing-Filing-Capping Machine

3 gallon / 5 gallon Jug Washing-Filing-Capping Machine

3 gallon / 5 gallon Jug Washing-Filing-Capping Machine



If you are not sure which type you should select or you need professionally technical consultation, please contact us, we will provide you with the most suitable solution according to your actual needs.
